Top Menu Overview in dbWatch Control Center

The top menu in dbWatch Control Center provides quick access to core functionality, user preferences, and diagnostic information.
By default, the menu consists of the following entries:

- Monitor
- Server
- Help
- Views
- Profile

Additional menu items may appear depending on which module is currently active.

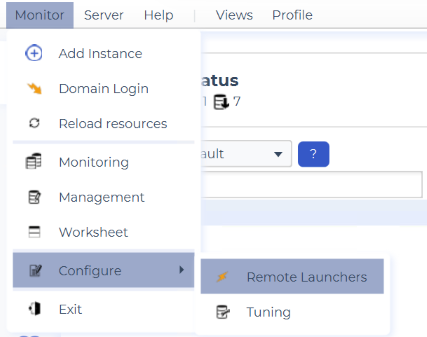

Monitor Menu

The Monitor menu provides access to the main monitoring and management functions of dbWatch Control Center.

The menu includes options for adding database instances, logging in to domains, reloading resources, and opening the Monitoring, Management, and Worksheet modules.

The Configure submenu provides additional options, including Remote Launchers and Tuning.

For more information, see:

• Control Center Modules

• Monitoring

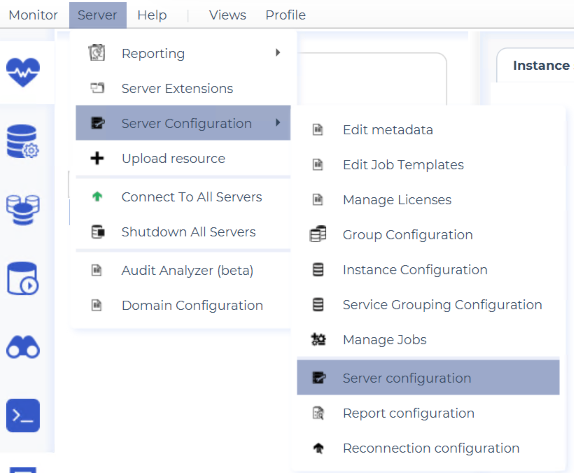

Server Menu

The Server menu provides access to server administration, configuration, reporting, and resource management functions.

The Server Configuration submenu contains options for managing database instances, instance groups, service groupings, monitoring jobs, licenses, reports, and other server settings.

The menu also provides access to Domain Configuration, Server Extensions, resource uploads, and server connection controls.

For more information, see:

• Domain Configuration

• Managing Jobs

Help Menu

The Help menu offers links, logs, notifications, diagnostic tools, and support options relevant to dbWatch Control Center operations.

The Help menu contains the following submenus:

Help

Opens the dbWatch CC online documentation.
This links directly to the up-to-date product documentation available on the dbWatch website.

Error Log

Displays detailed information related to dbWatch CC operations.
The log includes technical messages, warnings, and error details that may be useful for troubleshooting, support cases, or internal diagnostics.

Notifications

Shows published notifications from dbWatch Control Center.
These may include system messages, alerts, task information, or administrative notices.

Remote Support

Provides access to dbWatch remote support functionality.

For more details, see:

• Remote Support

This link describes how to activate remote support sessions, what information is shared, and how dbWatch engineers can assist during troubleshooting.

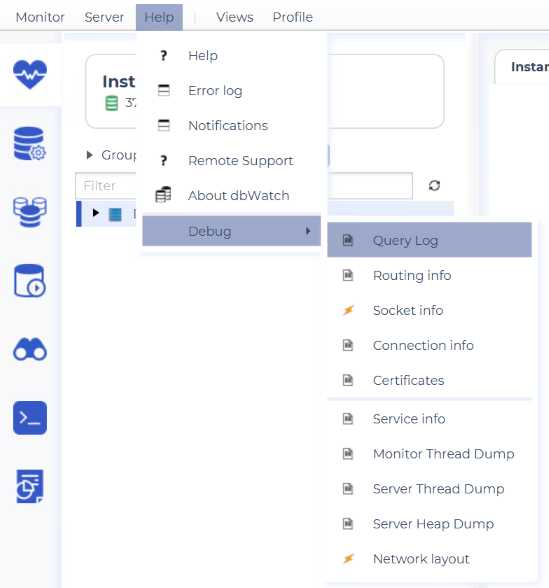

Debug

The Debug submenu contains a set of diagnostic tools and system introspection views intended for advanced troubleshooting.
These tools provide insight into routing, network communication, sockets, certificates, service behavior, and execution paths.
These tools are primarily intended for advanced users, support engineers, or environments where deeper system-level inspection is required.

The Debug submenu includes:

- Query Log
- Routing Info
- Socket Info
- Connection Info
- Certificates
- Service Info
- Monitor Thread Dump
- Server Thread Dump
- Server Heap Dump
- Network Layout

Network Layout

Shows a graphical display of your dbWatch network, including server relationships and connection paths.

For details see:

• Network Layout

Views Menu

The Views menu allows users to show or hide modules in dbWatch Control Center by enabling or disabling the corresponding checkboxes.

This allows users to customize the interface by displaying only the modules they need.

For more information, see:

• Disabling and Enabling Views

Profile Menu

The Profile menu contains user-specific options related to monitoring layout, authentication, and preferences.

The Profile menu includes the following submenus:

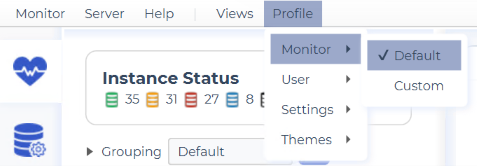

Monitor

Contains two options:
- Default
- Custom

Selecting Custom allows the user to define their own Monitor tabs and layout.
This is useful when you want to tailor the Monitor dashboards to specific operational needs or workflows.

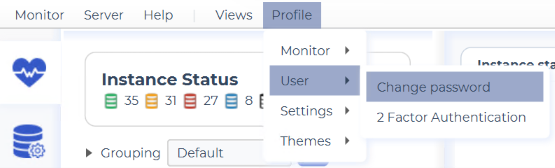

User

The User menu provides access to security and authentication settings:
- Change Password
- 2-Factor Authentication

These options allow users to update credentials and enhance account security through two-factor verification.

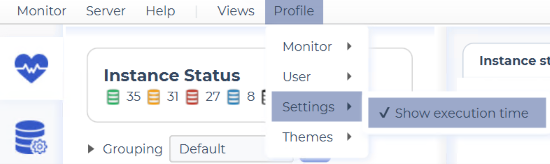

Settings

The Settings menu contains user-level preferences.

Currently it includes the option Show execution time

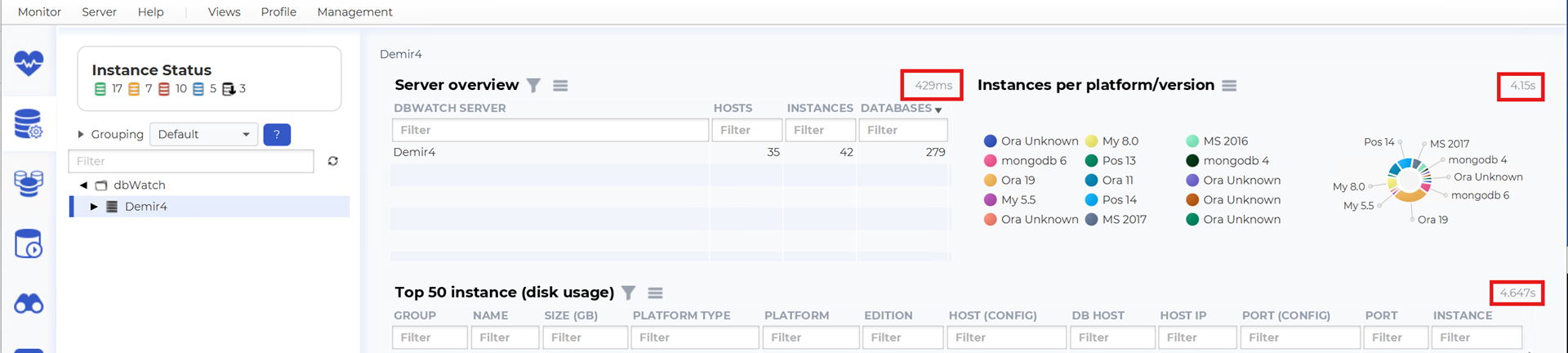

When enabled, dbWatch Control Center will display the execution time of queries used to generate views and reports.
This is useful for monitoring system responsiveness, understanding module performance, and optimizing database operations.

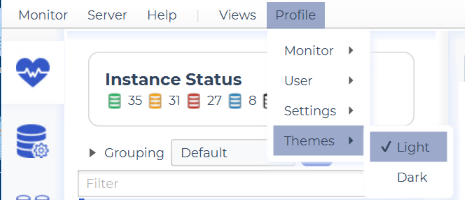

Themes

The Themes menu allows users to select the visual appearance of dbWatch Control Center.

Two themes are available:
- Light
- Dark

The Light theme uses the standard light background and interface.

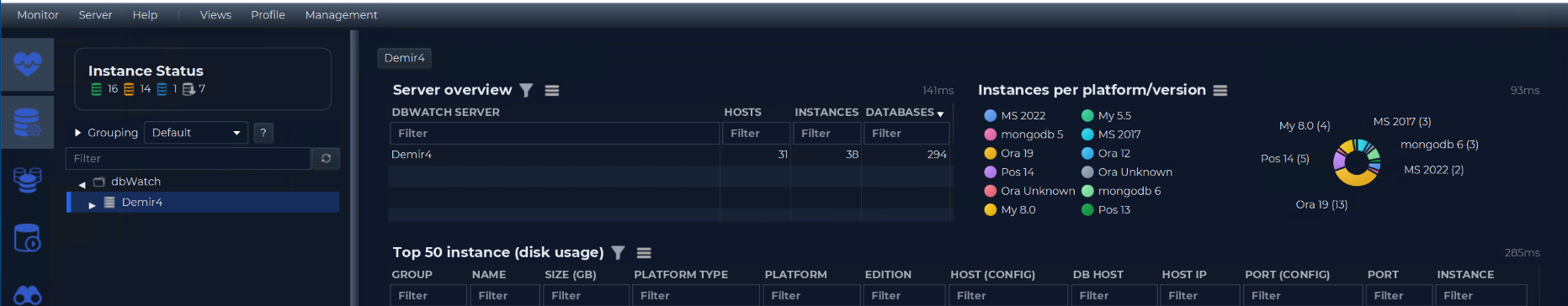

The Dark theme uses a dark background and adjusts the user interface, including dashboards and other views, for improved visibility in low-light environments or according to user preference.
